A shrink packing machine is a device that wraps products in a plastic film that shrinks tightly around them when heated, providing protection and enhancing their appearance.
Wrapping Packing Machine
Satisfy your advanced demand, adopt flexible design and manufacture with new technology, offer more advanced models with different functions:YCBS25Z YCBS25CF YCBS20ZT YCBS20ZB
Product Features
Specially designed and manufactured for the middle speed packing requirements of drinks (pure water, beverage, fruit juice and milk product, etc).
During the product forward conveying process, it can automatically group into package, so as to save time and enhance packing efficiency. Adopt the Programmable Logic Controller (PLC), which can carry out the automatically work flow.
Use the isothermal sealing cutter, its surface spray TEFLON COAT, the seal is even and secure.
Innovative models in the field of domestic medium speed shrink film packaging machines, National Patent [ZL2021 3 0001699.4].
Standard Equipments
|
Thermostatic Sealing and Cutting |

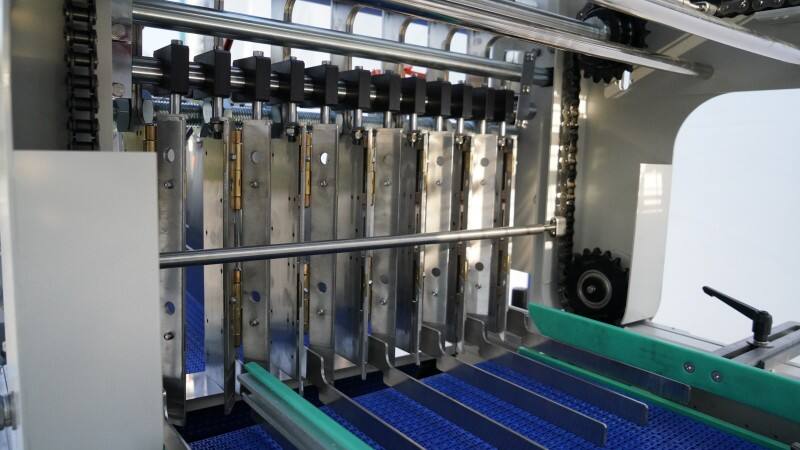

Portal Bottle Dividing System |
|

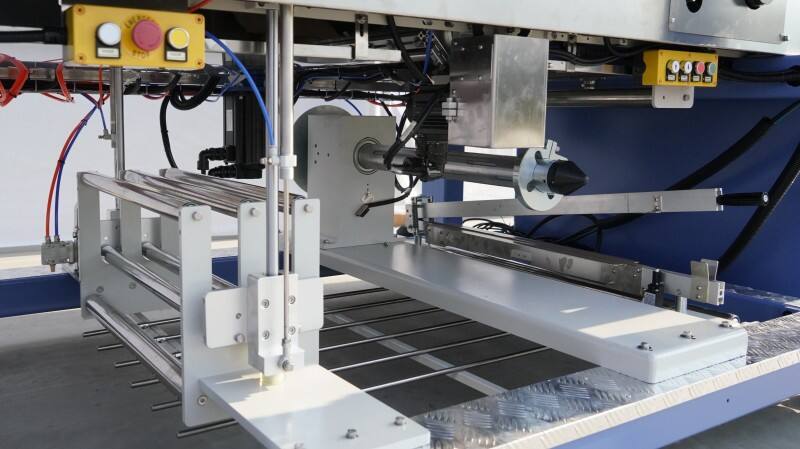

The machine features a thermostatic seal cutter that delivers neatly welded lines with sealing strength three times that of cold cutting and hot sealing knives, and a lifespan 80 times longer than hot sealing knives. |

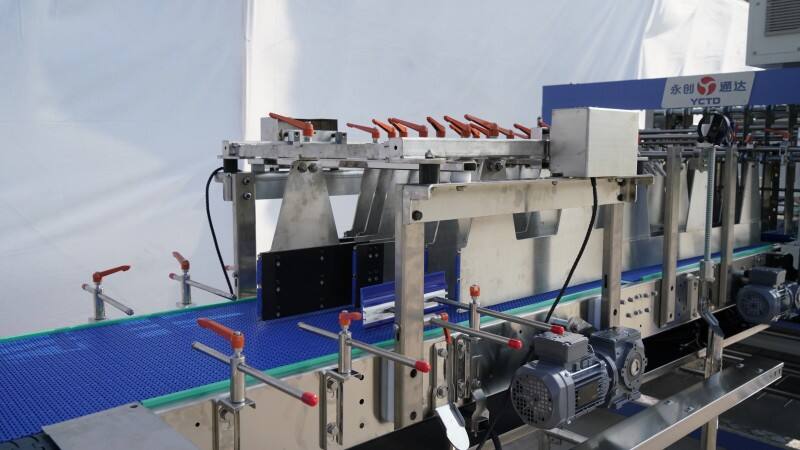

The system adopts a mature portal bottle dividing method, allowing for continuous and smooth bottle feeding, and effortless grouping of square bottles, ensuring wide practicality. | |
|
Sleek and Innovative Design |
Advanced Shrinkage Furnace Design |
|
|
The production line boasts a simple yet aesthetically pleasing exterior, featuring a novel and unique structure that facilitates easy maintenance.
|

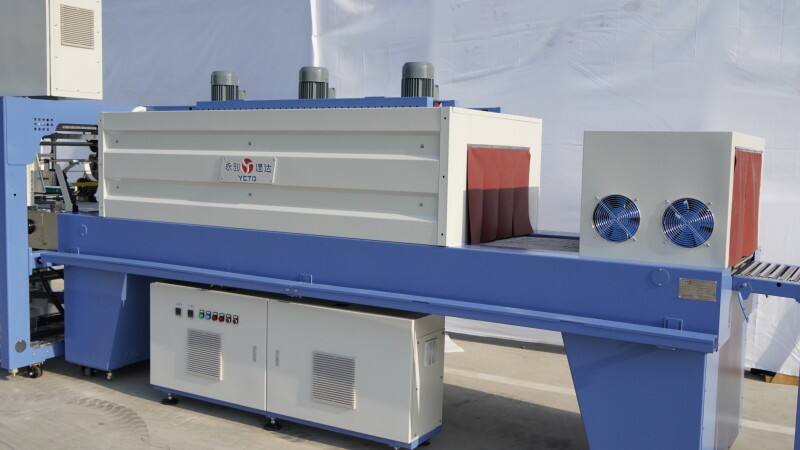

The self-developed shrinkage channel and two sets of centrifugal hot air circulation systems in the shrinkage furnace ensure uniform heat distribution, resulting in tight and visually appealing shrinkage. |

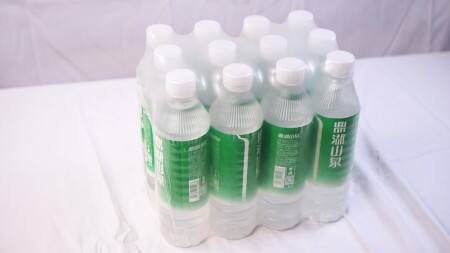

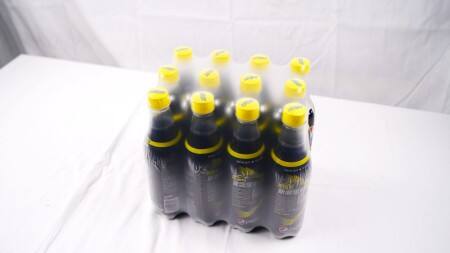

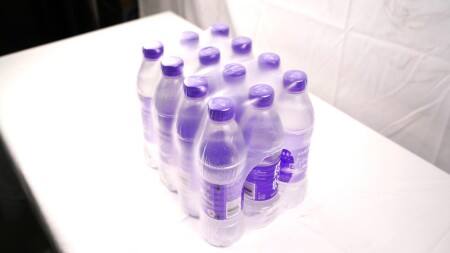

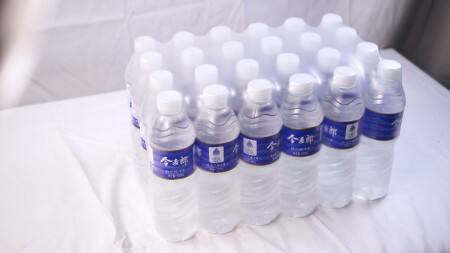

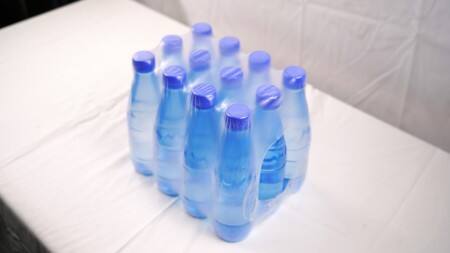

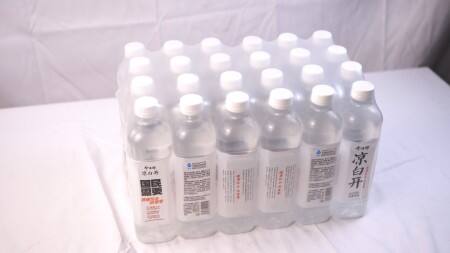

Packaging Effect
 |
 |
 |
 |
 |
 |
Product Specification
| Dimension For The Whole Unit | L13840mm * W1100mm * H2100mm |
| Thermal Shrinkage Tunnel Dimension | L2400mm * W650mm * H450mm |
| Packaging Speed | 18-20 Pcs/minute |
| Transfer Belt Dimension | 541mm |
| Sealing And Cutting Time/Temperature | 0.5-1.5s 170°C -200°C |
| Work Voltage/Power | 3Phase 5Line 380V 38KW |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 350NL/min |
