A shrink packing machine is a device that wraps products in a plastic film that shrinks tightly around them when heated, providing protection and enhancing their appearance.
Wrapping Packing Machine
Satisfy your advanced demand, adopt flexible design and manufacture with new technology, offer more advanced models with Different functions: YCD-7045 YCBS20 YCBS30Z YCBS50D YCBS60D etc.
Product Features
Specially designed for bulk packaging of beer, fruit juice, mineral water, dairy，condiment; all sorts of drinks and beverages with or without bottom support.
Unique film layoff mechanism and constant tension film conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
Equipped servo motor control system, bottle-feeding, film feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable. LCD touch-screen panel has a user-friendly interface and it is rapid for parameter setting and convenient for human-machine communication, operation and control.
Shrink tunnel uses unique air circulation system， smooth conveyor belts， providing long lasting service.
Standard Equipments
|
Physical pressure reduction design |

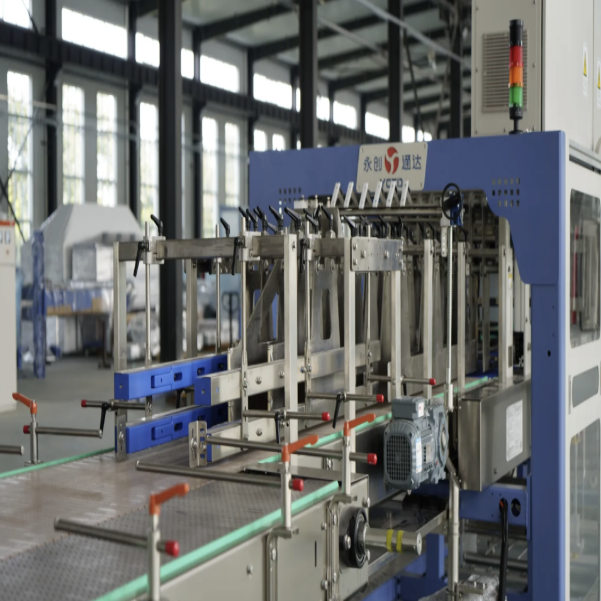

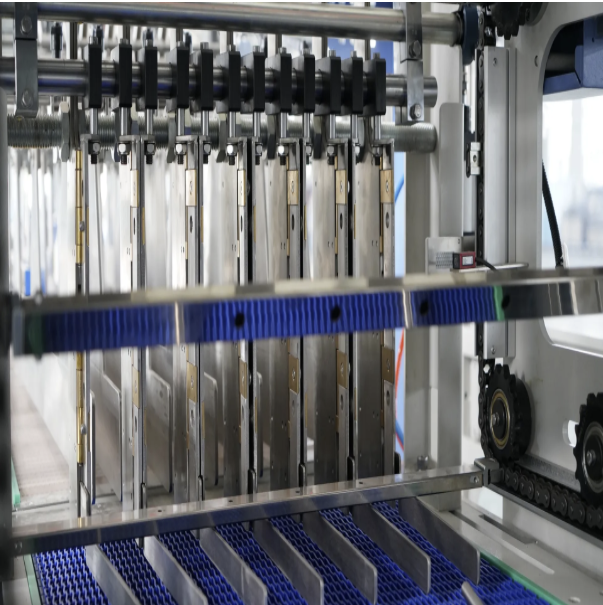

Efficient gate-type bottle grouping |
|
|
Utilizing gate-type grouping for fast bottle feeding, improving production efficiency. | |
|
Precise three-servo motion control system |

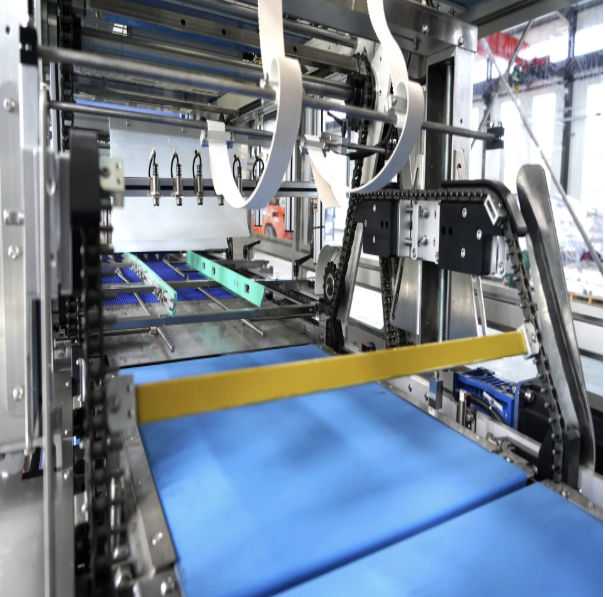

Fast film delivery and replacement |
|
Carefully selected three-servo system ensures precise and smooth operation with high accuracy. |

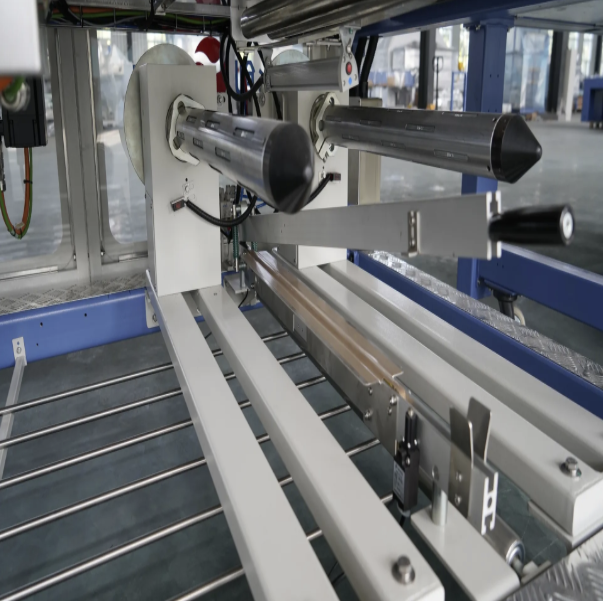

Pneumatic expansion supports the film roll for stable delivery, and electronic induction enables quick and efficient film replacement. |
Packaging Effect
 |
 |
 |
 |
 |
 |
Product Specification
| Model | YCBS40 |
| Machine Dimension | L16390mm*W1800mm*H2500mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | L460mm*W280mm*H345mm |
| Packing Speed | 35-40 pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | (3Phase5Line) 380V 60Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5200KG |
