A shrink packing machine is a device that wraps products in a plastic film that shrinks tightly around them when heated, providing protection and enhancing their appearance.
Tray + Wrapping Packing Machine
Satisfy your advanced demand, adopt flexible design and manufacture with new technology Offer more advanced models with different functions:YCBS25ZB YCBS35ZB YCBS60ZB
Product Features
Specially designed for bundle packing of beer, drinks and beverage, fruit juice, bottle water, dairy, condiment and so on with bottom support. During the product forward conveying process, it can automatically group into package, so as to save time and enhance packing efficiency. The color screen has a friendly operation interface, and it is rapid for parameter setting and convenient for human-machine communication, operation and control.
Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.
It can suit for different bottleneck and bottle combination tray+wrapping packing machine.
This machine can add print film packing function, can add cardboard+wrapping packing machine scheme.
Standard Equipments
|

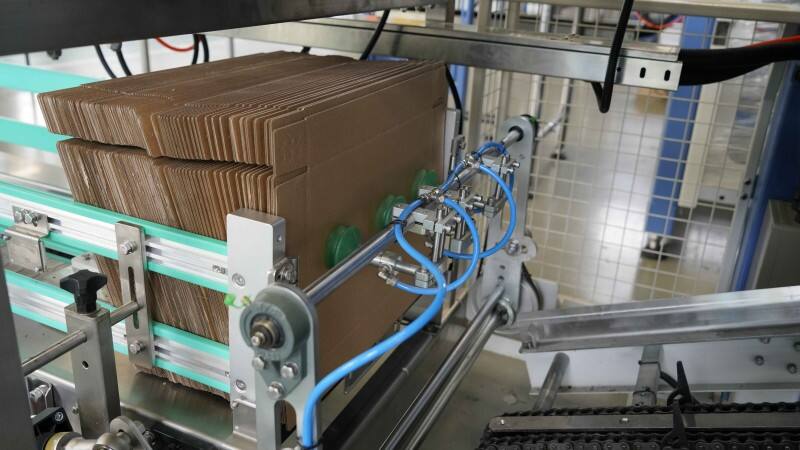

The cylinder paperboard grabbing mechanism |

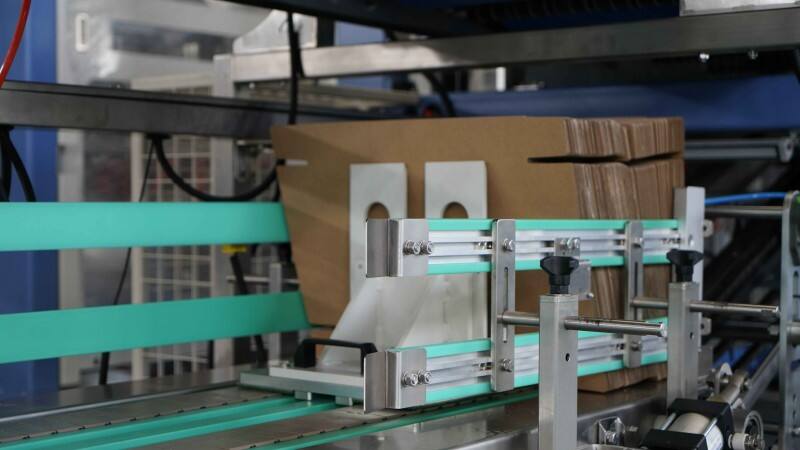

Open and elongated side paperboard storage design |
|
Utilizing internationally renowned pneumatic components, effectively reducing the paperboard grabbing error rate to 0.05%. |
Convenient loading of paperboard while increasing storage capacity, enhancing equipment efficiency, and reducing labor intensity. | |
|
Shrink chamber with airflow technology |
Unleash Uncompromising Performance |
|
Achieving multi-directional airflow control and adjustable air outlet positions, significantly improving the shrinkage effect. |

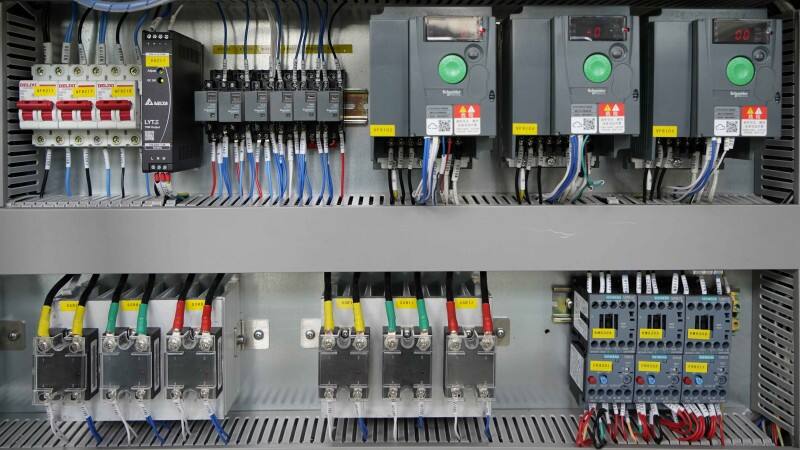

Handpicked Premium Electrical Components, Elevating Electrical Configuration for Unparalleled Stability. |
Packaging Effect
 |
 |
 |
 |
 |
 |
Product Specification
| Model | YCBS35ZT |
| Machine Dimension | L18424mm*W1800mm*H2700mm |
| Shrinkage Tunnel Dimension | L2500mm*W700mm*H450mm |
| Max Package Dimension | W=180-300 L=240-420 |
| Packing Speed | 35 pcs/min |
| Transfer Belt Width | 610mm |
| Work Voltage/Power | (3Phase5Line) 380V 66Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 150NL/min |
| Total Weight | 5500KG |
