A shrink packing machine is a device that wraps products in a plastic film that shrinks tightly around them when heated, providing protection and enhancing their appearance.
Wrapping Packing Machine
Satisfy your advanced demand, adopt flexible design and manufacture with new technology offer more advanced models with different functions:YCD-6535CF YCD-6535G YCD-6535Z YCD-6535ZB etc.
Product Features
Specially designed for packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc.
With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cutting, shrinkage, cooling and shaping, etc.
Using advanced constant temperature membrane heat binding technology in the world with clear and secure sealing.
Adopt with PLC automatic program circulation control with stable and reliable performance.
The original imported guide bar cylinder guarantee correct operation and durable using.
Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
This machine enjoy National Patent [ZL202130001727.2].
Standard Equipments
|

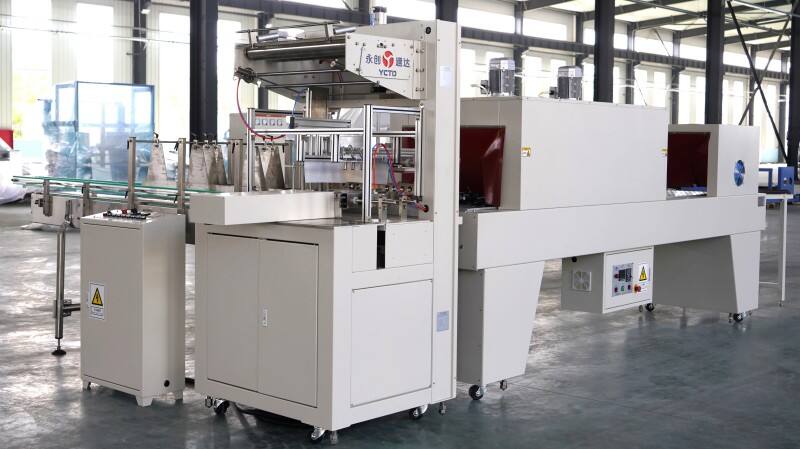

Small Footprint and Versatile Connectivity |

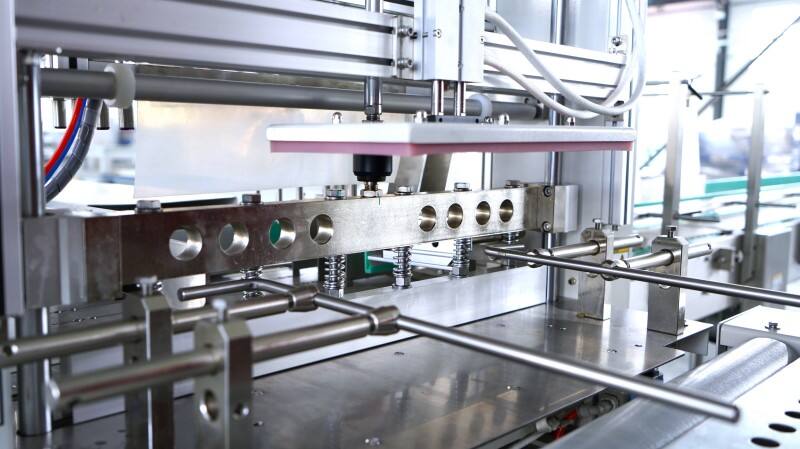

Efficient Thermostatic Sealing and Cutting |
|
|
The equipment occupies minimal space and offers multiple connection options, providing ease of workshop layout.
|
Utilizing a third-generation SHF thermostatic seal cutter, the machine produces neat welding lines with sealing strength three times that of cold cutting and hot sealing knives, and a lifespan 80 times longer than hot sealing knives. | |
|

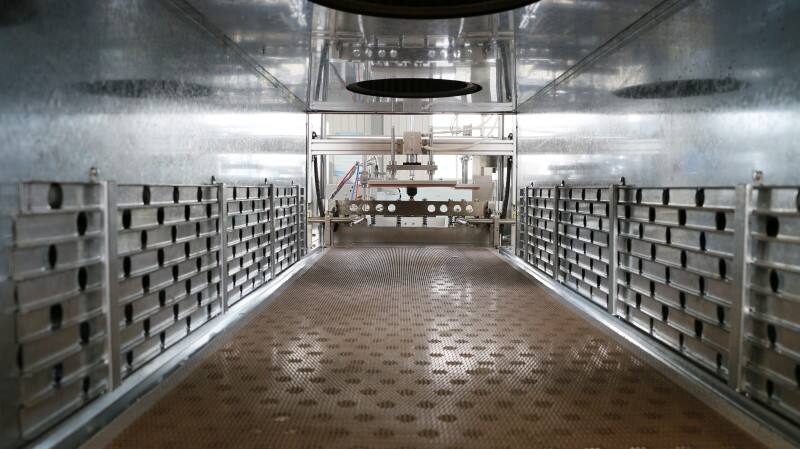

Advanced Shrinkage Furnace Design |

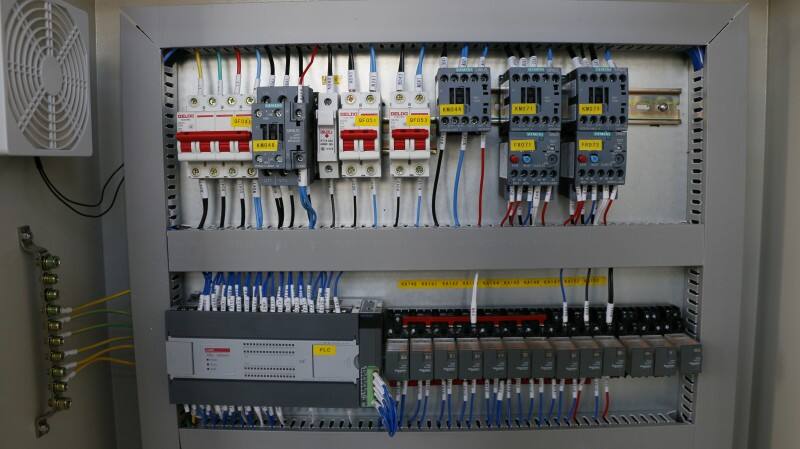

High-Quality Electrical Components |
|
The shrinkage furnace incorporates a self-developed shrinkage channel and two sets of centrifugal hot air circulation systems, ensuring even heat distribution, resulting in tight and aesthetically pleasing shrinkage. |
The equipment is fitted with electrical components from renowned international brands, ensuring stability and reliability throughout operation.
|

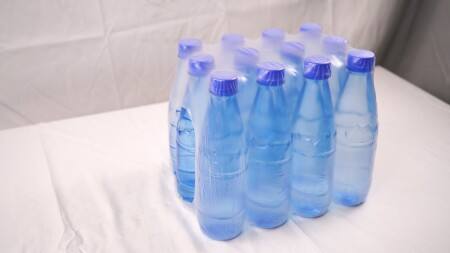

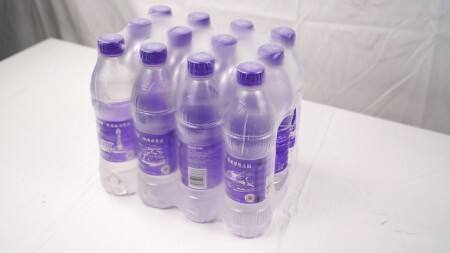

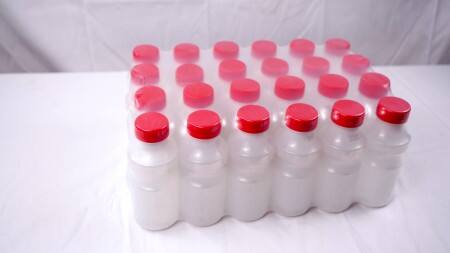

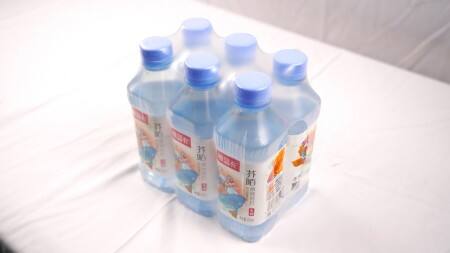

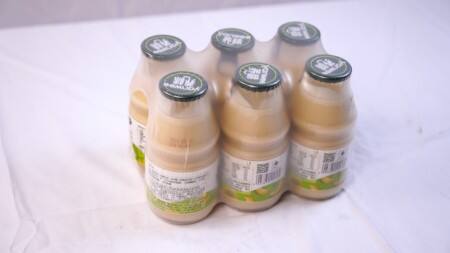

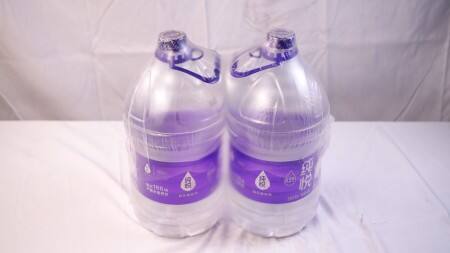

Packaging Effect
 |
 |
 |
 |
 |
 |
Product Specification
| Dimension For The Whole Unit | L6500mm * W3200mm * H2100mm |
| Thermal Shrinkage Tunnel Dimension | L1800mm * W650mm * H450mm |
| Max Package Dimension | L600mm * W400mm * H350mm |
| Packaging Speed | 10-12 Pcs/minute |
| Transfer Belt Dimension | 304mm |
| Sealing And Cutting Time/Temperature | 0.5-1.5s 140°C -200°C |
| Work Voltage/Power | 3Phase 5Line 380V 24KW |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 300NL/min |
| Dimension For The Whole Unit | L6500mm * W3200mm * H2100mm |
