A shrink packing machine is a device that wraps products in a plastic film that shrinks tightly around them when heated, providing protection and enhancing their appearance.
Wrapping Packing Machine
Satisfy your advanced demand, adopt flexible design and manufacture with new technology Offer more advanced models with different functions:YCBS60Z YCBS45XS etc.
Product Features
Specially designed for bulk packaging of beer, fruit juice, mineral water, dairy，condiment; all sorts of drinks and beverages with or without bottom support.
Unique film layoff mechanism and constant tension film conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
Special shaking setting for bottle-dividing, none status for blocking and bearing bottle, smooth transport.
Equipped servo motor control system, bottle-feeding, film feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable. National invention patent [ZL 2021 3 0001850.4] “ultrathin film system”，use ultra-thin PE film with faster speed and stable.
Standard Equipments
|

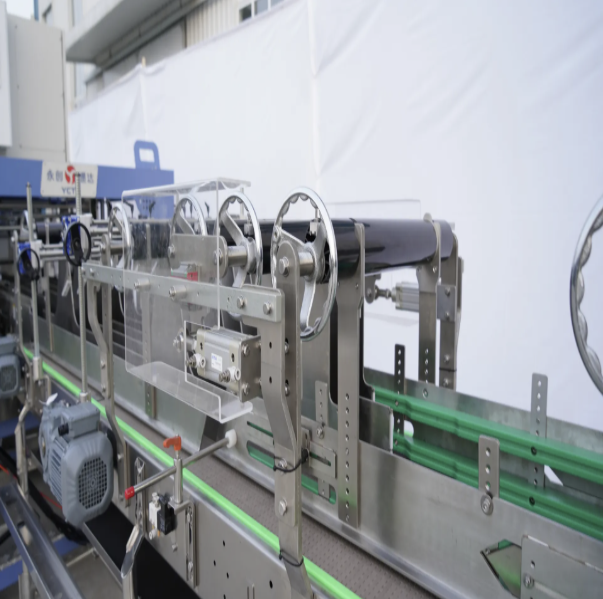

Conveying system |

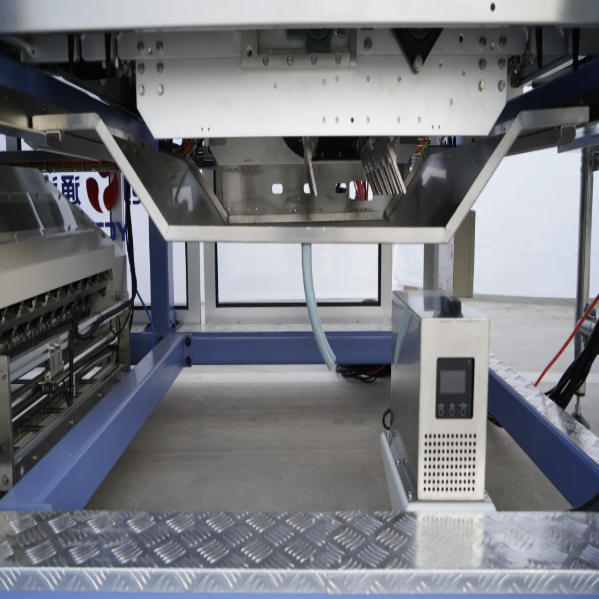

Pre-cut film |
|
|
Extended conveying system for efficient bottle sorting and increased durability.
|
"Pre-cut film" technology for smooth delivery of ultra-thin shrink films, reducing packaging costs. | |
|

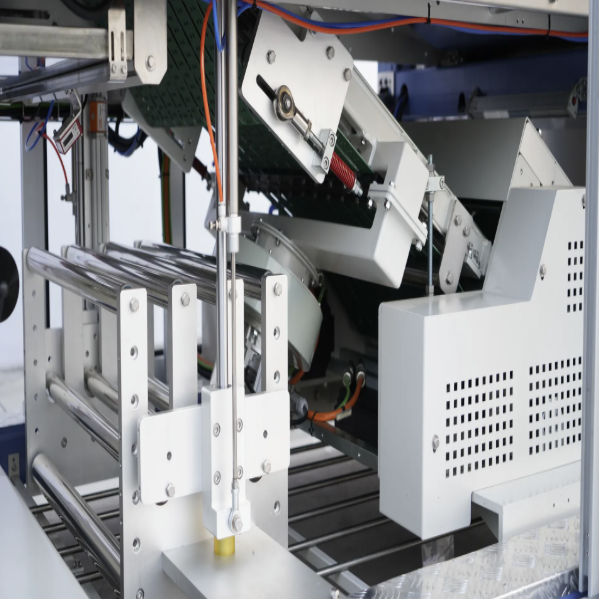

Fork-type bottle grouping |

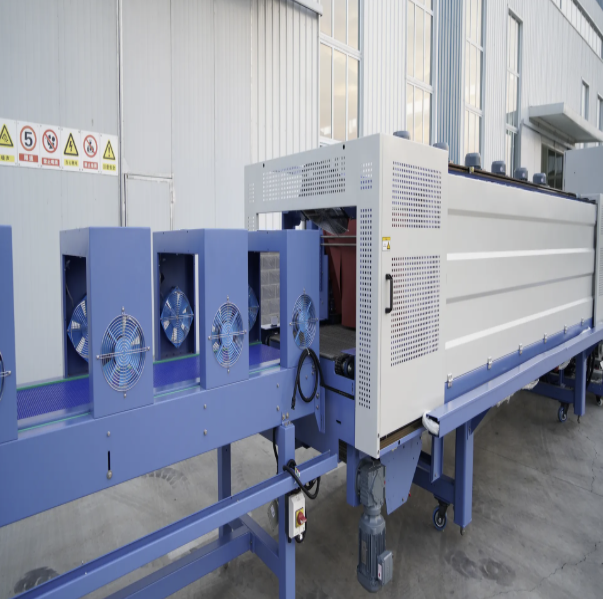

The shrink chamber |
|
Continuous fork-type bottle grouping with automatic parameter search for quick adjustments. |
Innovative external opening structure in the shrink chamber for easy maintenance and excellent energy-saving performance. |

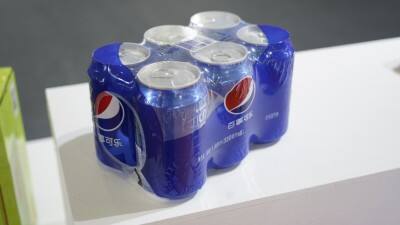

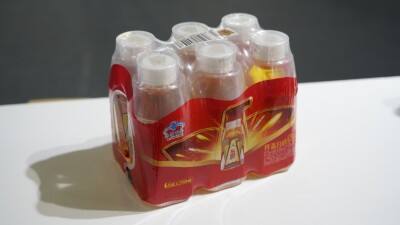

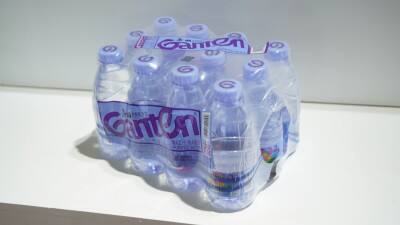

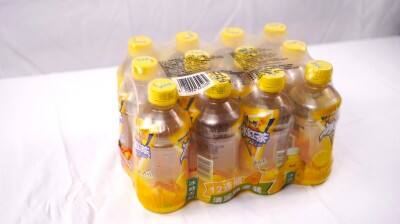

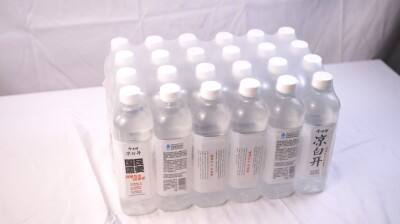

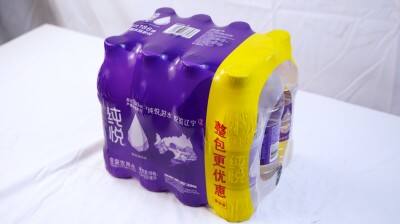

Packaging Effect
 |
 |
 |
 |
 |
 |
Product Specification
| Model | YCBS60 |
| Machine Dimension | L19145mm * W1800mm * H2500mm |
| Shrinkage Tunnel Dimension | L3000mm * W700mm * H450mm |
| Max Package Dimension | L460mm * W280mm * H345mm |
| Packing Speed | 55-60 pcs/min |
| Transfer Belt Width | 686mm |
| Work Voltage/Power | (3Phase5Line) 380V 92Kw |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 80NL/min-100NL/min |
| Total Weight | 5500KG |
